Field returns from electronic assemblies frequently reveal a frustrating pattern: components that passed functional testing fail within months of deployment. Industry experts estimate that ESD is responsible for more than 30 percent of semiconductor failures during manufacturing and handling, yet the most insidious damage category evades immediate detection entirely. Whilst catastrophic ESD events destroy components instantly, latent damage creates micro-defects that degrade progressively under thermal and electrical stress. This delayed manifestation explains why assemblies clearing quality control subsequently generate costly warranty claims and reputational damage for manufacturers.
Latent ESD damage creates micro-junction degradation in semiconductor devices without immediate functional failure. These compromised structures pass initial testing but degrade progressively under normal operating conditions, manifesting as field failures weeks or months post-assembly.
The latent ESD damage paradox in electronics
The electronics manufacturing sector faces a detection challenge that conventional quality assurance struggles to resolve. Research published in the Journal of Electrostatics confirms that whilst most damage results in immediate failures, parametric changes or undetected latent damage can also occur and represent the primary concern for production environments.
The distinction between damage categories determines whether failures appear on the assembly line or in customer deployments. Catastrophic events exceeding component withstand voltages destroy oxide layers instantly, producing immediate opens or shorts detectable through basic continuity testing. By contrast, discharges near but below destruction thresholds create micro-cracks in junction interfaces, partial gate oxide breakdown, or localised metallisation damage. These defects maintain sufficient initial functionality to pass voltage, current, and logic verification whilst harbouring progressive degradation pathways.
20-30%
Proportion of ESD damage manifesting as latent failures rather than immediate catastrophic failures
Industry analysis demonstrates that detection difficulty stems from the microscopic scale of initial damage and the time-dependent nature of degradation. A junction compromised by partial breakdown maintains near-normal electrical characteristics initially, with parametric drift accelerating only after extended thermal cycling or voltage stress exposure. This delayed manifestation creates the paradox: assemblies manufactured in compliant EPA environments, handled with proper grounding, and validated through functional testing still generate field failures attributable to ESD damage sustained during production.
How does degradation progress undetected through assembly?
Understanding latent damage progression requires examining the physical mechanisms operating within semiconductor structures following sub-threshold discharge events. Modern modern PCB technologies for devices incorporate increasingly sensitive components with junction geometries measured in nanometres, where charge injection from even modest electrostatic potentials compromises structural integrity without immediate functional consequence.

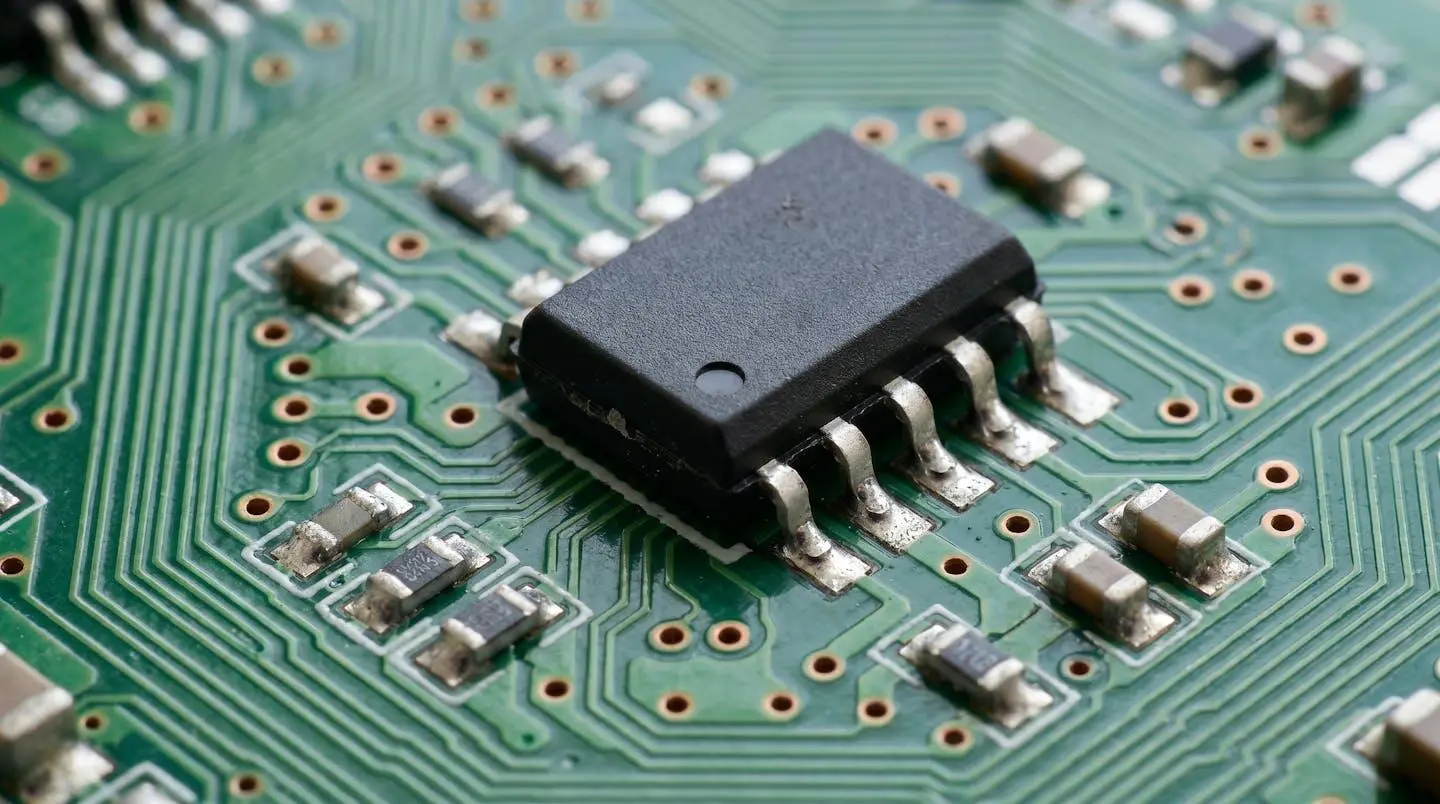

Electrostatic discharge injects localised charge concentrations into gate oxides and junction interfaces, creating defect sites that function as leakage pathways. At the atomic level, these defects manifest as broken silicon-oxygen bonds in oxide layers or localised crystalline disruption at metallisation interfaces. Initial leakage currents remain within parametric tolerances, allowing components to pass standard electrical verification. The defect sites themselves, however, create stress concentration points where subsequent thermal expansion cycles and applied voltages progressively enlarge the damaged region. Field data consistently shows this enlargement follows predictable physics: thermal cycling induces differential expansion between materials, mechanically stressing defect boundaries, whilst applied voltages generate localised current densities at leakage sites, producing joule heating that accelerates atomic migration.
Operating temperature significantly influences degradation velocity. Components experiencing normal thermal environments between 25°C and 85°C undergo continuous expansion-contraction cycling that mechanically fatigues compromised junction structures. Research demonstrates that damaged oxide regions exhibit coefficients of thermal expansion differing from surrounding intact material, creating shear forces at defect boundaries during each temperature transition. Manufacturing environments typically maintain controlled conditions, yet deployed electronics encounter variable thermal loads from power cycling, environmental conditions, and operational duty cycles. A component passing room-temperature functional testing may contain latent damage that remains stable until exposed to elevated operating temperatures in field deployment.
The functional testing blind spot: Standard quality control protocols verify that components meet electrical specifications at test conditions. These protocols cannot detect micro-structural damage that degrades progressively under operating stress. Functional testing validates present performance whilst latent defects represent future failure pathways invisible to conventional verification methods.
The interval between damage occurrence and functional failure exhibits wide distribution depending on defect severity, component type, and operating conditions. Industry observations indicate failure timelines ranging from days to months, with median values typically appearing between six and eighteen months post-assembly. Statistical analysis of failure populations reveals characteristic patterns. Components with severe latent damage fail relatively quickly within the first month—the infant mortality period. Moderate damage produces failures distributed across the early-life phase, whilst minimal damage may never progress to functional failure within product service life.
The comparison below distinguishes immediate catastrophic damage from latent degradation across critical detection and manifestation parameters. Each characteristic influences the required prevention and testing strategy.
| Characteristic | Catastrophic Damage | Latent Damage |
|---|---|---|
| Detection difficulty | Immediate detection via functional testing | Requires thermal cycling or burn-in stress testing |
| Manifestation timeline | Instant failure during or immediately after discharge event | Progressive degradation over weeks to months |
| Failure mechanism | Complete oxide breakdown or junction destruction | Micro-junction degradation with parametric drift |
| Prevention focus | Grounding and ionisation to eliminate discharge events | Combined prevention plus enhanced post-assembly stress testing |
| Cost impact | Assembly line scrap and rework costs | Field warranty returns and reputation damage |
Why do standard testing protocols miss latent failures?
Quality assurance methodologies evolved to detect immediate functional defects face fundamental limitations when confronting latent ESD damage. The gap between testing capabilities and degradation mechanisms creates the pathway through which compromised components escape production controls and reach field deployment.
Functional testing validates that assembled boards meet electrical specifications: correct voltages, proper logic states, acceptable current consumption, and expected signal responses. These measurements confirm present performance but provide minimal insight into structural integrity or degradation susceptibility. A component containing micro-junction damage exhibits near-normal parametric behaviour initially, with defects only influencing performance after stress accumulation. Standard cutting-edge integrated circuit design incorporates considerable parametric margin, meaning components can harbour significant latent damage whilst still meeting specification limits during room-temperature functional verification.
The temporal dimension compounds detection difficulty. Manufacturing throughput requirements typically limit quality control testing to minutes per assembly, insufficient duration to stress latent defects into manifestation. Even extended functional testing conducted at room temperature fails to replicate the cumulative thermal and electrical stress that deployed products experience over weeks of operation.
Case analysis: latent failures escaping quality control
Consider a production scenario manufacturing industrial control assemblies. The facility implements EPA zones compliant with IEC 61340-5-1, utilises wrist straps and ionisation, and conducts thorough functional testing validating all logic functions, communication interfaces, and output drivers. Initial field deployment proceeds normally, yet between months four and eight post-delivery, approximately 2.8% of units exhibit intermittent faults progressing to complete failures.
Failure analysis reveals leakage current in specific integrated circuits exceeding datasheet maximums, causing logic state corruption under elevated temperatures. Reverse engineering traces the root cause to latent ESD damage sustained during assembly—components passed initial testing because room-temperature leakage remained within limits, but thermal stress in field installations (cycling between 15°C and 75°C) progressively enlarged micro-defects until functional failure occurred.
Resolution required implementing burn-in testing protocols: assemblies undergo 48 hours at 85°C with power cycling before final verification. This enhanced stress testing culls latent defects by accelerating degradation timelines, transforming failures that would occur at six months into detectable faults within two days. Field failure rates subsequently decreased to below 0.4%.
The effectiveness gap between functional testing and stress-based protocols derives from acceleration factors. Thermal cycling at elevated temperatures (typically 85°C to 125°C for burn-in procedures) accelerates degradation mechanisms by factors of ten to one hundred compared to room-temperature operation. Similarly, voltage margining—testing at supply voltages 10% above nominal—stresses defective junctions more severely, causing latent damage to manifest as measurable parametric shifts or functional failures within compressed timeframes.
Prevention strategies across the production lifecycle
Addressing latent ESD damage requires multi-layered protection spanning design decisions, assembly environment controls, and enhanced post-production verification. The most effective approach recognises that no single intervention eliminates risk entirely; rather, cumulative protection layers reduce failure probability to acceptable levels.
Prevention begins during product design through component selection favouring robust ESD withstand ratings. The requirements set out in IEC 61340-5-1:2024 published by the IEC specify minimum withstand voltages of 100V HBM (Human Body Model) and 200V CDM (Charged Device Model) for components requiring ESD protection. Specifying components exceeding these minimums—preferably 2kV HBM or higher—provides margin against sub-threshold discharge events that create latent damage. Circuit topology contributes significantly to protection effectiveness through incorporating transient voltage suppression devices at interface pins, guard rings around sensitive circuits, and strategic ground plane segmentation.

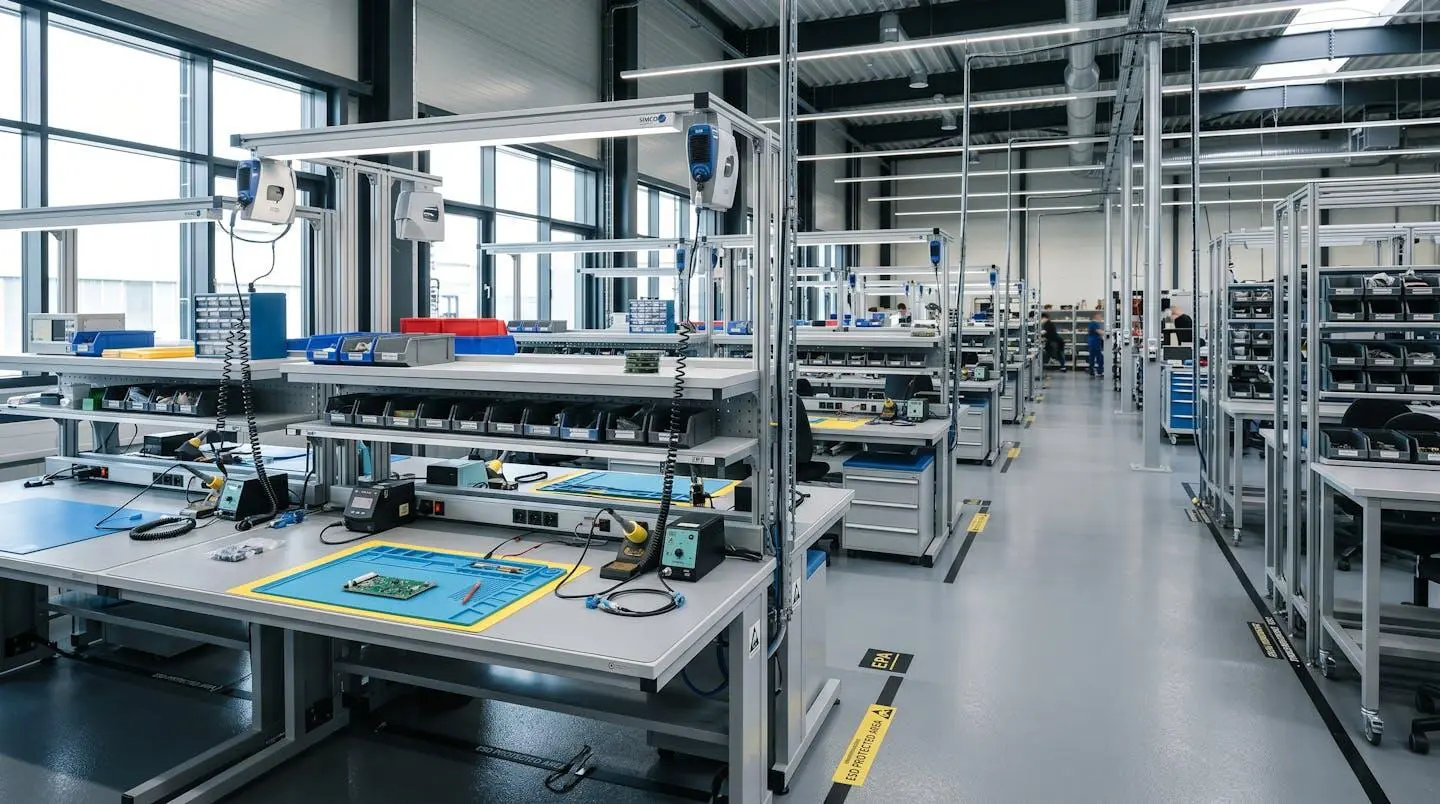

Manufacturing facilities must establish and maintain ESD Protected Areas conforming to international standards. This encompasses grounding all conductive surfaces including workbenches, flooring, and equipment chassis to common-point grounds, ensuring surface resistivity measurements fall within specified ranges (typically 10^6 to 10^9 ohms for static-dissipative materials). Personnel grounding through wrist straps or heel grounders maintains body potential near earth ground, preventing charge accumulation during component handling.
Comprehensive EPA implementation requires both environmental controls and component-level protection. Integrating an ESD protection circuit within assembly processes provides dual-layer defence: environmental measures prevent charge generation and accumulation, whilst circuit-level protection intercepts residual discharge events that evade facility controls. This combined approach addresses both immediate catastrophic damage and sub-threshold events that create latent defects.
Ionisation systems neutralise charge on insulating materials incapable of grounding, critical for modern assemblies incorporating plastic housings, adhesive labels, and non-conductive substrates. The standard specifies that voltage on isolated conductors must remain below 35V, achievable only through balanced ionisation maintaining air ion concentrations sufficient to neutralise static charges within seconds of generation. Environmental controls extend protection through humidity management—maintaining 40-60% relative humidity provides optimal conditions balancing electrostatic control against moisture-related concerns.
Detecting latent defects requires stress testing protocols accelerating degradation mechanisms into detectable manifestation. Thermal cycling subjects assemblies to repeated temperature transitions between operational extremes (commonly -40°C to +85°C for commercial products), mechanically stressing compromised junctions whilst monitoring for parametric shifts or functional failures. Burn-in testing combines elevated temperature with operational power cycling, simultaneously stressing multiple degradation pathways. Industry data indicates that 48 to 72 hours at 85°C with voltage applied culls the majority of latent defects that would otherwise manifest as early field failures. Parametric measurement provides quantitative assessment of component condition—measuring leakage currents, threshold voltages, and propagation delays before and after stress testing reveals degradation indicative of latent damage.
- Design phase: Specify components with HBM withstand ratings ≥2kV and incorporate TVS protection on all external interfaces
- Design phase: Implement PCB layout practices including ground planes and controlled trace impedances
- Assembly environment: Establish EPA zones with verified grounding of all conductive work surfaces and equipment
- Assembly environment: Maintain 40-60% relative humidity and verify ionisation system balance quarterly
- Assembly environment: Implement personnel grounding through wrist straps with continuous monitors or heel grounders
- Assembly environment: Package completed assemblies in shielding bags rated for component sensitivity levels
- Post-assembly testing: Conduct thermal cycling (-40°C to +85°C, minimum 5 cycles) for critical applications
- Post-assembly testing: Implement burn-in protocols (48-72 hours at 85°C with power cycling) for high-reliability products
- Post-assembly testing: Measure parametric values (leakage currents, threshold voltages) before and after stress testing to identify marginal components
The persistent challenge of latent ESD damage surfacing after assembly and testing stems from the fundamental mismatch between conventional quality control methods and progressive degradation mechanisms. Whilst EPA implementation and proper handling protocols prevent the majority of catastrophic damage, eliminating latent defects requires enhanced stress testing protocols that accelerate degradation timelines into detectable manifestation. Manufacturers experiencing field failure rates exceeding targets should prioritise thermal cycling or burn-in testing implementation, particularly for products operating in demanding thermal environments or where warranty costs justify the additional production investment. The evidence indicates that comprehensive ESD protection spanning design, assembly environment, and post-production verification represents the most effective approach to converting latent failures into detectable defects before customer deployment.
